TRAIL LEADER

With its uncompromising blend of agility and stability, the Rubicon is all confidence as it scales twisty, rocky inclines, or snakes through tight tree-lined sections with ease. On less intense trail rides, its independent front and rear suspension, along with plush, roomy seating, provides a consistent level of comfort that few ATVs can claim.

Features

Efficient, Durable Engine Design

Powerful liquid-cooled 475 cc engine is longitudinally mounted, allowing direct driveshaft alignment to both front and rear wheels for maximum drivetrain efficiency. Liquid cooling provides consistent engine operating temperature in extreme conditions for maximum power output and long engine life. Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband. Rubber-cushion engine mounting and gear-driven counter-balancer reduce vibration.

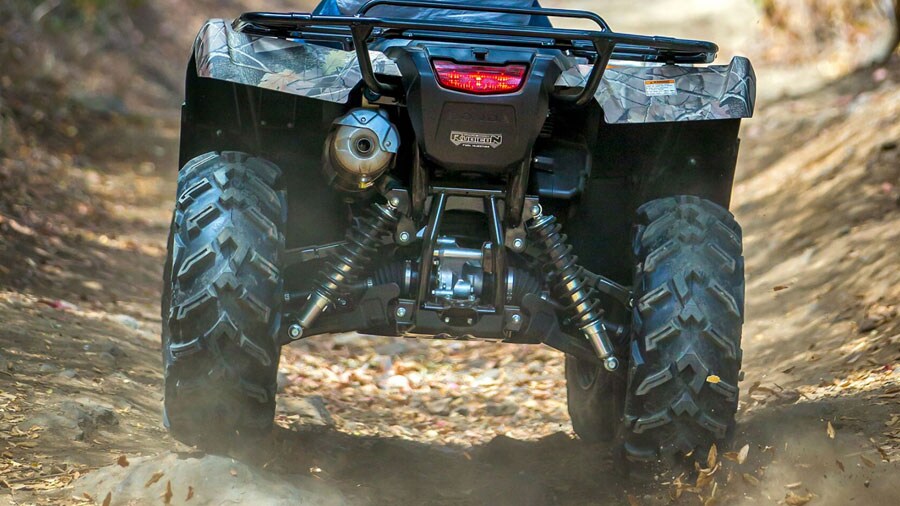

Independent Rear Suspension, Excellent Handling

Double-wishbone independent front suspension provides 185 mm (7.3 in.) of well-controlled travel, providing a sense of security and control over difficult terrain. Independent Rear Suspension (IRS) design with lower A arms and upper I arms features optimized stiffness for improved handling performance, and an ample 215 mm (8.5 in.) of travel. Durable wrap-around guards protect the rear suspension's lower A arms when rock crawling. Adjustable spring preload on all shocks allows suspension to be tuned to match varying loads and riding conditions.



Rugged Design, Convenient Access

Bold bodywork offers excellent mud and debris protection. Clever one-piece tank/side cover design requires no tools for removal, providing quick access for maintenance.




Gallery

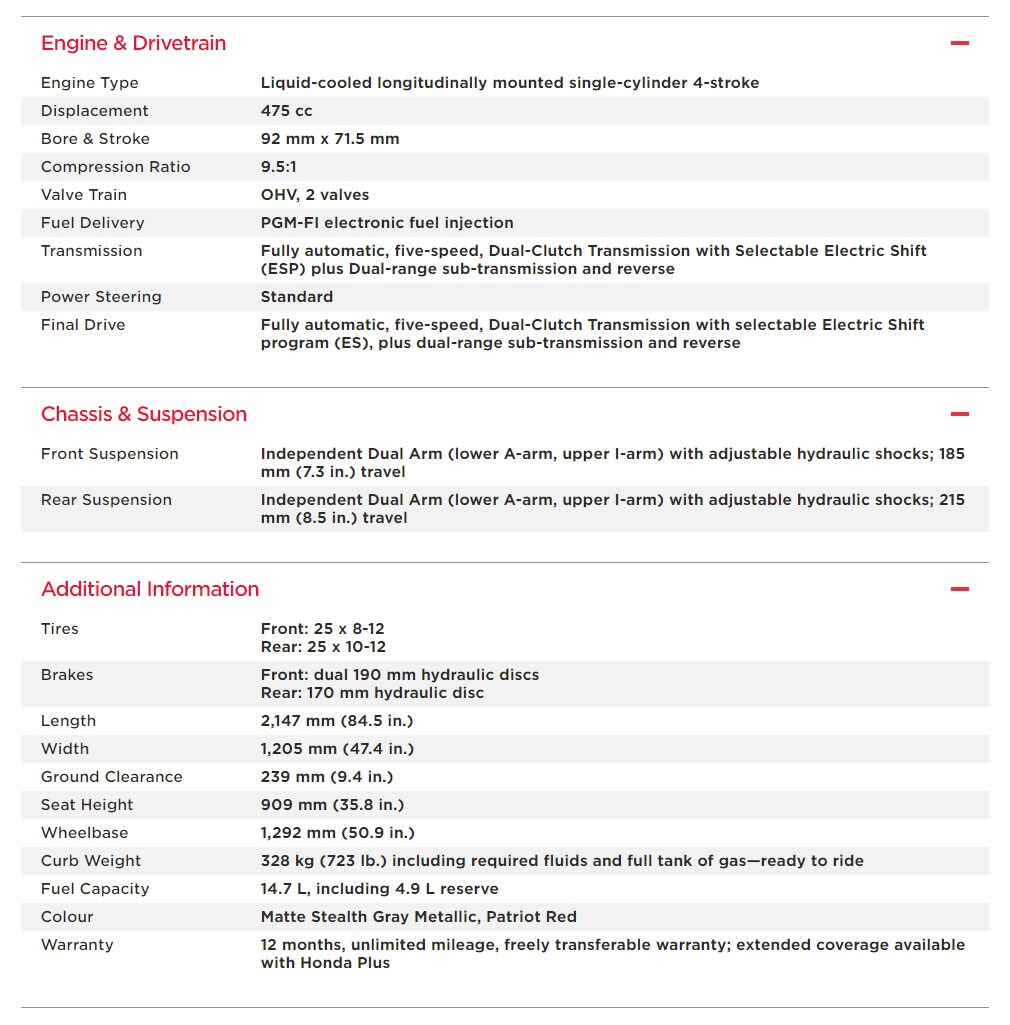

Specifications
