ICONIC TRAIL LEADER

Tackle rough Canadian trails with confidence on the Rubicon 520-its fully independent suspension makes every tough task seem easy.

Features

Efficient, Durable Engine Design

Powerful liquid-cooled 518 cc engine is longitudinally mounted, allowing direct driveshaft alignment to both front and rear wheels for maximum drivetrain efficiency. Liquid cooling provides consistent engine operating temperature in extreme conditions for maximum power output and long engine life. Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband. Rubber-cushion engine mounting and gear-driven counter-balancer reduce vibration.

Independent Rear Suspension, Excellent Handling

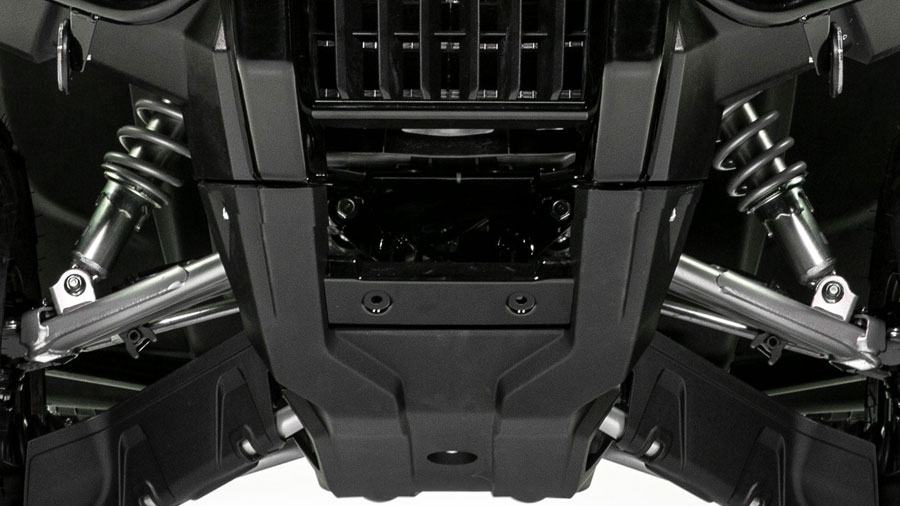

Double A-arm independent front suspension provides 185 mm (7.3 in.) of well-controlled travel, providing a sense of security and control over difficult terrain. Independent Rear Suspension (IRS) design with lower A arm and upper I arm features optimized stiffness for improved handling performance, and an ample 215 mm (8.5 in.) of travel. Durable wrap-around guards protect the rear suspension's lower A arms when rock crawling. Adjustable spring preload on all shocks allows suspension to be tuned to match varying loads and riding conditions.



Deluxe Features

The Rubicon DCT Deluxe starts with all the same great features as the DCT IRS EPS, then adds lightweight aluminum wheels, silver-painted shock springs, silver-painted suspension arms.




Gallery

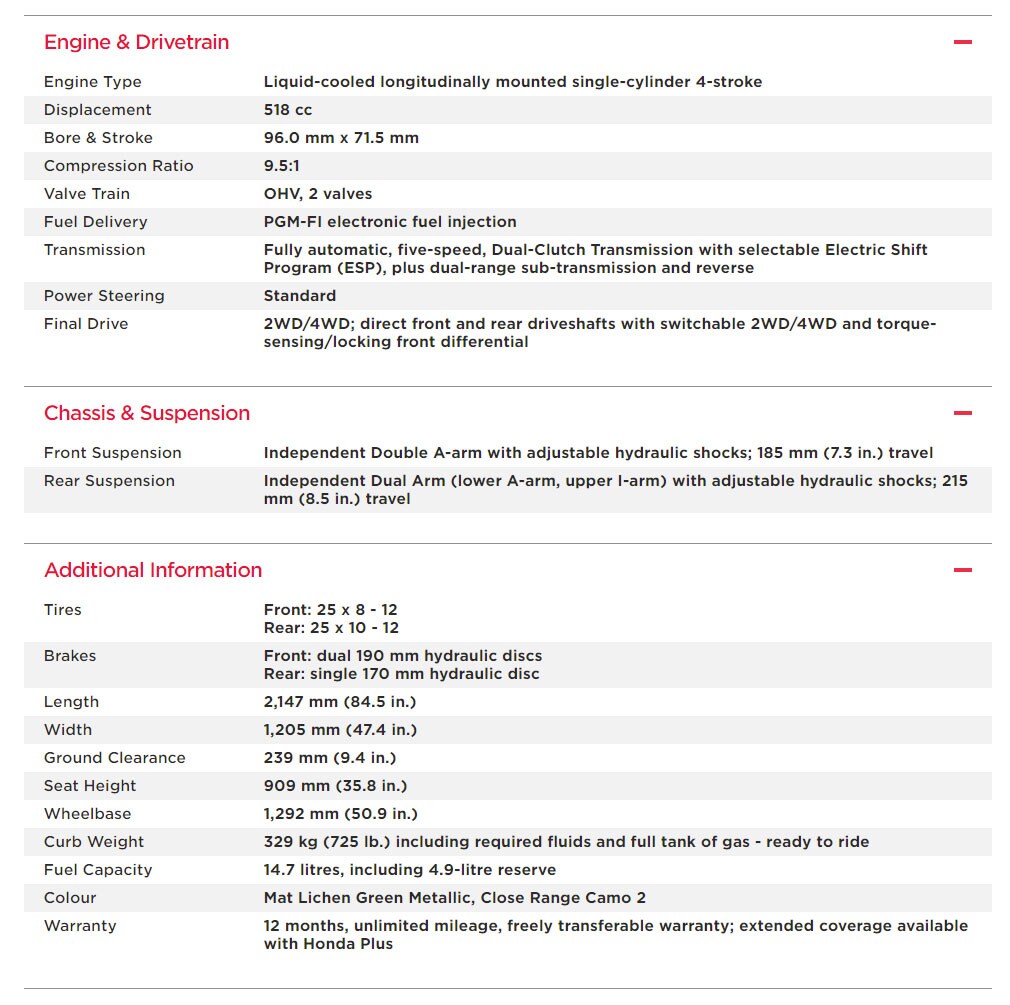

Specifications
