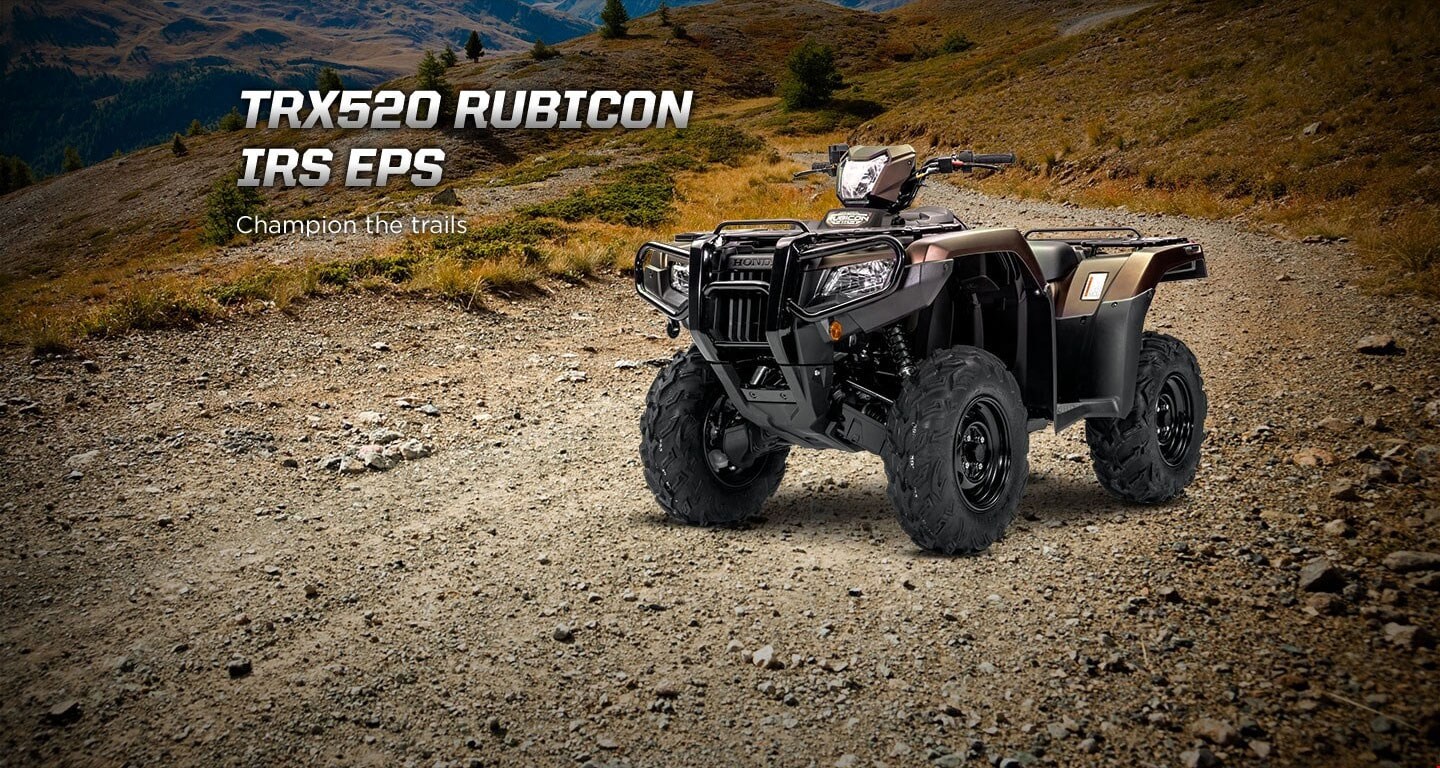

CHAMPION THE TRAILS

Tackle rough Canadian trails with confidence on the Rubicon 520-its fully independent suspension makes every tough task seem easy.

Features

Efficient, Durable Engine Design

Powerful liquid-cooled 518 cc engine is longitudinally mounted, allowing direct driveshaft alignment to both front and rear wheels for maximum drivetrain efficiency. Liquid cooling provides consistent engine operating temperature in extreme conditions for maximum power output and long engine life. Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband. Rubber-cushion engine mounting and gear-driven counter-balancer reduce vibration.

Independent Rear Suspension, Excellent Handling

Double-wishbone independent front suspension provides 185 mm (7.3 in.) of well-controlled travel, providing a sense of security and control over difficult terrain. Independent Rear Suspension (IRS) design with lower A arms and upper I arms features optimized stiffness for improved handling performance, and an ample 215 mm (8.5 in.) of travel. Durable wrap-around guards protect the rear suspension's lower A arms when rock crawling. Adjustable spring preload on all shocks allows suspension to be tuned to match varying loads and riding conditions.



New Pro Connect Rack System. Excellent Load and Towing Capacity

New Pro Connect Rack System for accessories. Mount accessories directly and quickly to the rear or front rack of your Rubicon using easy Pro Connect Rack System (no tools required). Our purpose-built line of Pro Connect accessories keeps your gear in place and more secure wherever you place your items on the rack while maximizing bed storage. Front and rear steel-tube carriers feature large steel plates and additional tie-down points for improved load security. Load capacity for the large front and rear carriers is 45 kg (99 lb.) and 85 kg (187 lb.) respectively. Heavy-duty trailer hitch with 600 kg (1,322 lb.) towing capacity.




Gallery
